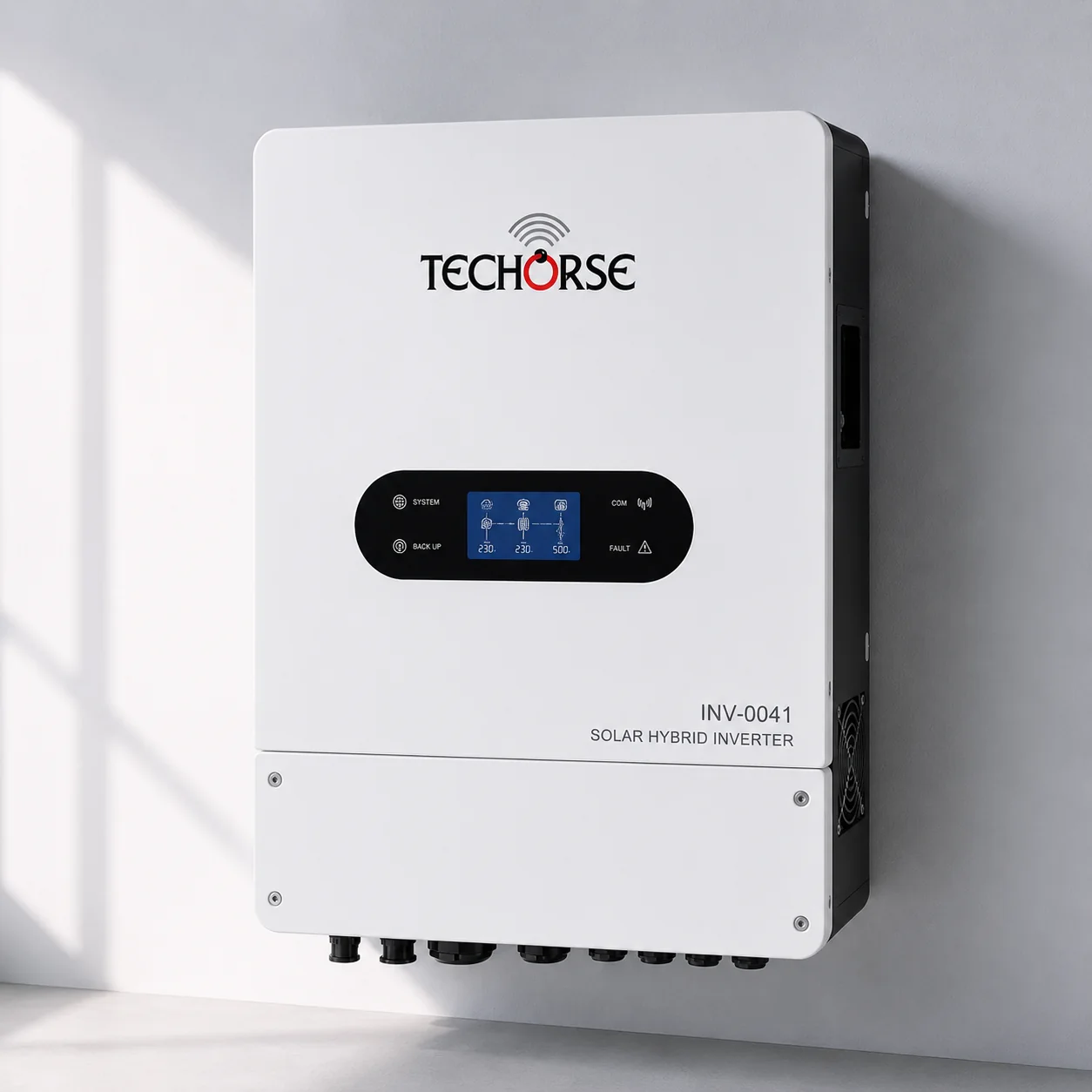

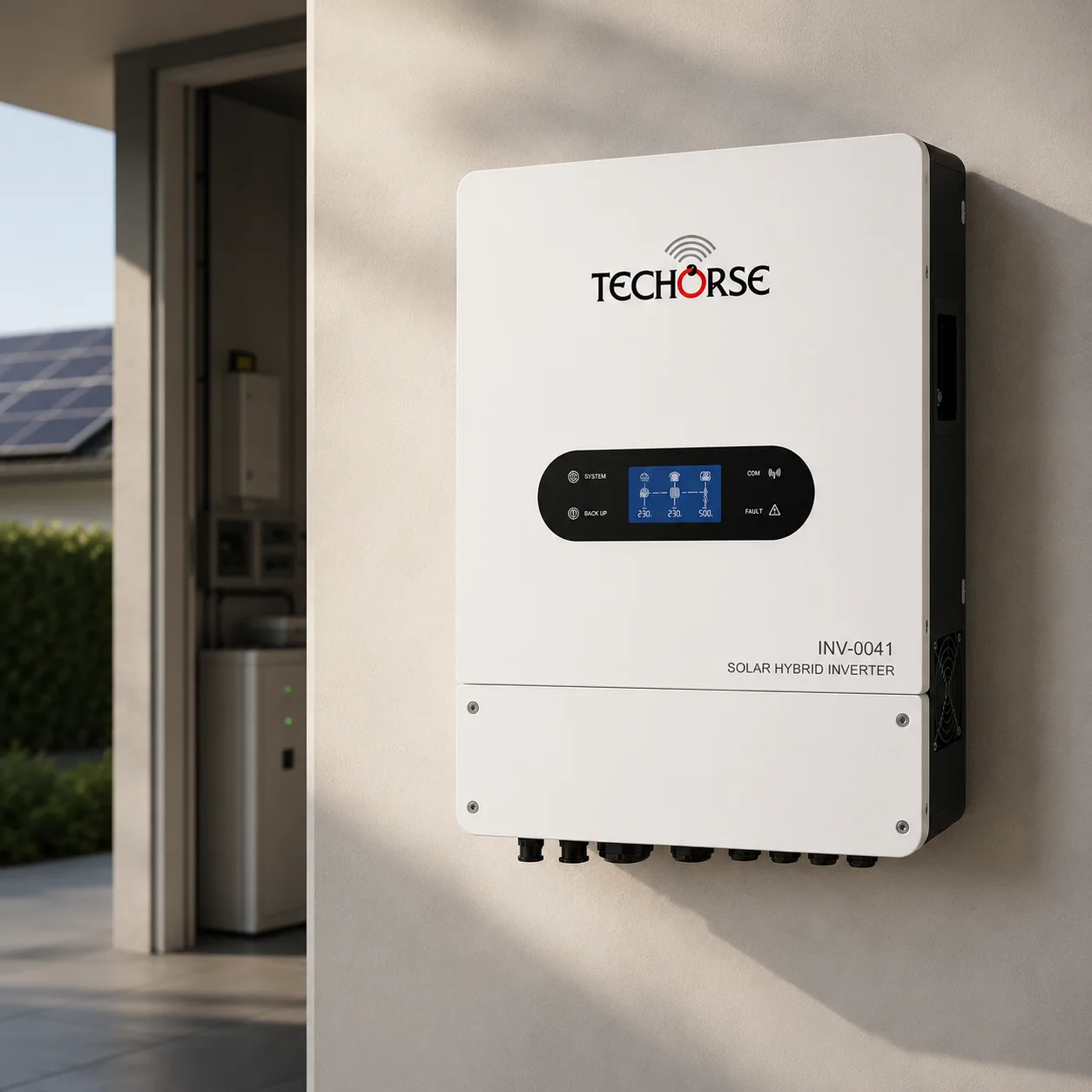

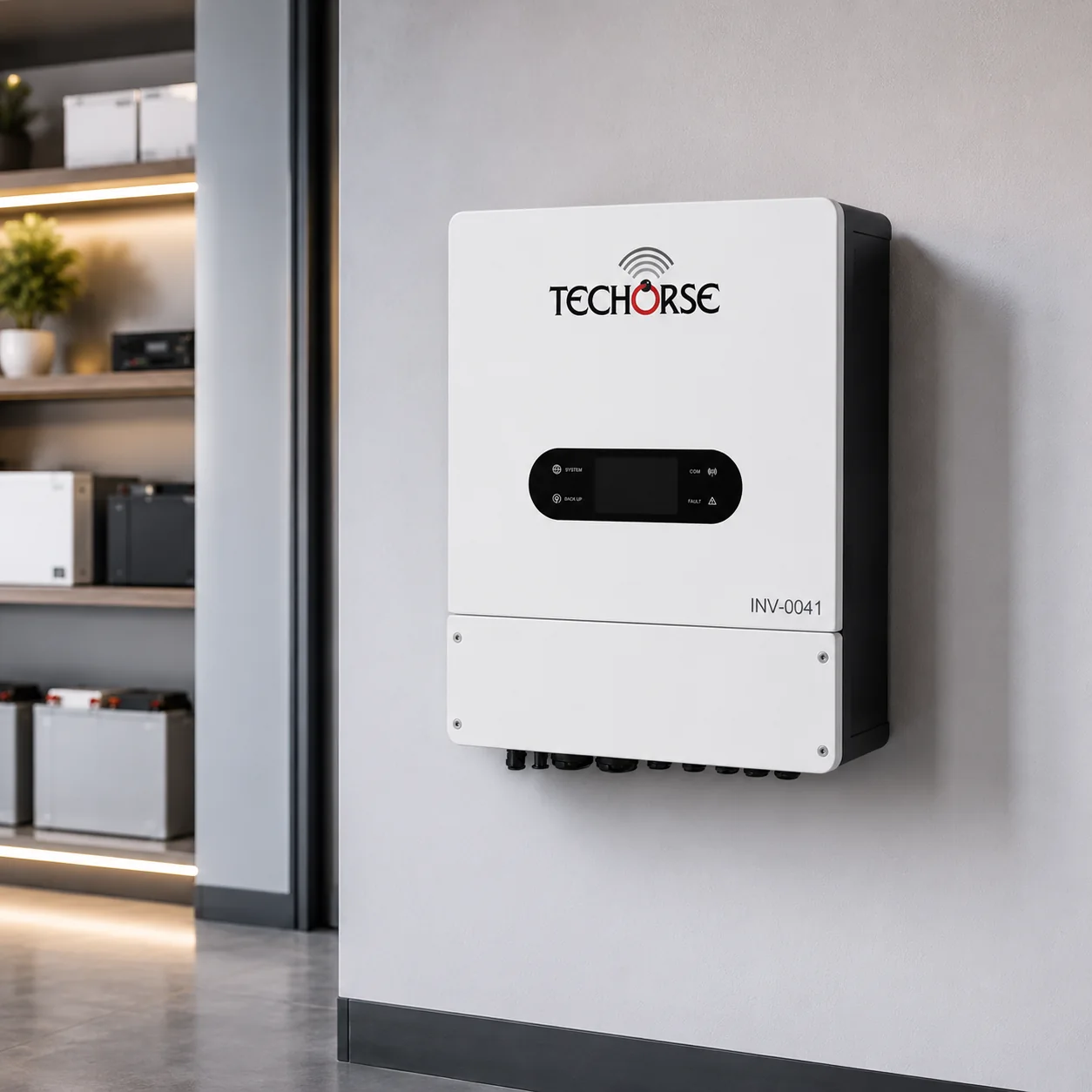

Techorse IP66 8KW Single-Phase Hybrid Solar Inverter

The Techorse IP66 8KW Single-Phase Hybrid Solar Inverter is engineered to deliver reliable solar power management, intelligent battery backup, and seamless grid integration for residential, commercial, and light-industrial applications. Designed with a rugged IP66-rated enclosure, it offers excellent protection against dust and water ingress, making it ideal for both indoor and outdoor installations in demanding environments.

Supporting both lead-acid and lithium-ion battery systems, the inverter provides flexibility for new solar installations as well as upgrades to existing energy systems. Its dual backup output enables priority loads such as lighting, networking equipment, and essential appliances to remain powered independently during grid outages.

With an ultra-fast UPS transfer time of less than 10 milliseconds, the inverter helps ensure uninterrupted operation of sensitive electronic equipment. Built-in mobile app monitoring and control allows users to remotely monitor system performance, manage energy production, and optimize power consumption from anywhere.

For larger energy requirements, the system supports parallel operation of up to 16 units, making it suitable for expanding residential, commercial, or industrial solar installations. The inverter also supports up to 110% AC output overload and accepts maximum PV input power up to two times its rated capacity, providing greater flexibility for solar array sizing and high-demand operating conditions.

Key Features

• Rated output: 8KW
• Single-phase hybrid solar inverter
• IP66-rated enclosure for superior dust and water protection
• Remote monitoring and control via mobile application
• Dual backup output for priority and general loads
• UPS transfer time: Less than 10 ms
• Compatible with lead-acid and lithium-ion batteries
• Supports parallel operation of up to 16 units
• Up to 110% AC output overload
• Maximum PV input power up to 2× rated power
• Off-grid peak power up to 2× rated power for 15 seconds
• Intelligent energy management for optimized solar utilization
• High-efficiency MPPT technology for maximum solar energy harvesting

Suitable Applications

The Techorse IP66 8KW Single-Phase Hybrid Solar Inverter is ideal for:

• Residential homes and luxury villas
• Offices and commercial buildings
• Retail stores and supermarkets
• Restaurants, cafés, and hospitality businesses
• Educational institutions
• Clinics and healthcare facilities
• Farmhouses and agricultural operations
• Telecom and networking equipment
• Backup power systems for critical loads
• Areas experiencing frequent power interruptions

Reliable Hybrid Power for Demanding Applications

The Techorse IP66 8KW Hybrid Solar Inverter is designed to maximize solar energy production while providing dependable backup power and intelligent battery management. Its robust IP66 construction, flexible battery compatibility, rapid UPS switchover, and scalable parallel operation make it an excellent solution for users seeking efficient, uninterrupted, and future-ready solar energy systems.

Request a Quote

Contact Techorse for product availability, technical consultation, compatible battery recommendations, system sizing assistance, and a customized quotation for the IP66 8KW Single-Phase Hybrid Solar Inverter.
